TWO STAGE AIR COMPRESSOR

( Maximum Pressure 12 Kg/Cm or 175 PSI )

HAWA	Cylinder	Motor Power		Piston Displacement		Tank Capacity	Compressor
Model	Size	HP	KW	LPM	CFM	LITRES	RPM
HCSC 300	70*50	3	2.2	302	10.97	200	925
HCSC 500	100*60	5	3.7	495	17.5	250	700
HCSC 600	100*60	7.5	5.5	609	21.5	250	925
HCSC 1000	100*70*100	10	7.5	993	35.1	420	750
HCSC 1500	100*70*100	15	11	1390	49.1	500	925
HCSC 2000	100*60*100	20	14.8	1566	55.3	500	1150

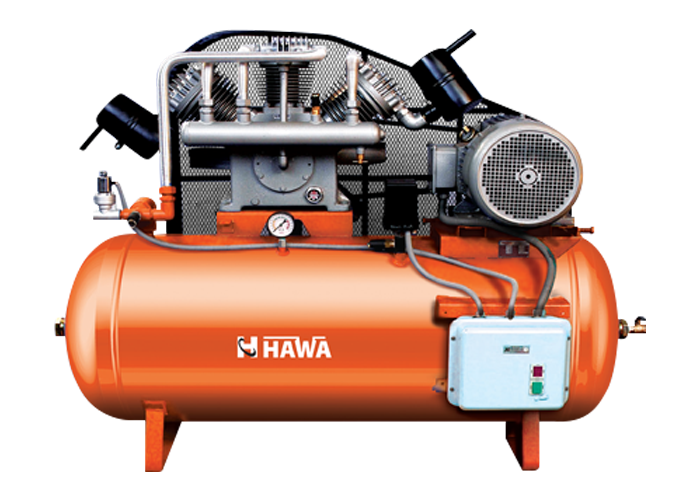

TWO STAGE COMPRESSOR

♦ Two Stage Compressors are Rugged Packages for Use Either as a Total Air System for Small Industrial installations or a Backup System in Major installations.
♦ These Compressors are Used Where the Pressure Requirement is More than 7Kg/Cm2 and Upto 14Kg/Cm2 Maximum Air Pressure.
♦ These Compressors are Ideal for a Textiles, Plastic Industries, Garages, Petrol Pumps, Blowering, Pneumatic Operators etc.Technical Specification

Technical Specification

Model	No. of Cylinder	Piston Displacement			Maximum Pressure		Motor
		CRM	M3/HR	LPM	PSIG	KG/CM2	HP	KW
HC284	2	7.46	12.66	211	200	14.06	2.00	1.50
HC284	2	9.79	16.61	277	200	14.06	3.00	2.25
HC2390	2	11.25	19.09	318	200	14.06	3.00	2.25
HC292	2	17.32	29.39	490	200	14.06	7.50	3.75
HC292	2	19.30	32.75	546	200	14.06	7.50	5.62
HC2525	2	22.00	37.33	623	200	14.06	7.50	5.62
HC303	2	26.40	44.80	747	200	14.06	7.50	5.62
HC2595	2	29.85	50.66	845	200	14.06	7.50	5.62
HC2595	2	37.82	64.18	1070	200	14.06	10.00	7.50
HC2595	2	41.75	70.85	1181	200	14.06	12.50	9.37
HC121T2	2	44.00	74.67	1245	200	14.06	12.50	9.37
HC121T2	2	55.00	93.34	1556	200	14.06	15.00	11.25
HC7150	2	55.00	93.34	1556	200	14.06	15.00	11.25
HC65T	3	63.80	106.91	1783	200	14.06	15.00	11.25
HC65T	3	81.00	138.81	2315	200	14.06	20.00	15.00
HC65T	3	91.00	154.43	2575	200	14.06	25.00	18.75
HC65T	3	111.00	186.67	3113	200	14.06	30.00	22.50
HC3050	3	110.00	186.67	3113	200	14.06	30.00	22.50
HC3050	3	120.00	203.64	3396	200	14.06	40.00	30.00
