HIGH PRESSURE COMPRESSOR

High Pressure Air Compressor Packages for
Pet Blowing

Model Pressure Kg/Cm2g Fed cfm Motor HP
42 HC PET-40 42 116 40
42 HC PET-50 42 135 50
42 HC PET-60 42 154 60
42 HC PET-70 42 196 75
42 HC PET-100 42 257 100
42 HC PET-125 42 287 125
42 HC PET-150 42 376 150
42 HC PET-175 42 420 175



AIR HIGH PRESSURE COMPRESSOR

Features

♦ Multi Stage High Pressure Compressor are Designed for High Pressure Operation Upto 70Kg/Cm2

♦ Three Compressors Frames Have Large Oil Capacity to Assure Low Bearing Temperature and Adequate Lubrication for Long Periods. These all Compressor are Having Cenrifugal Unloader to Prevent Starting Under Load.

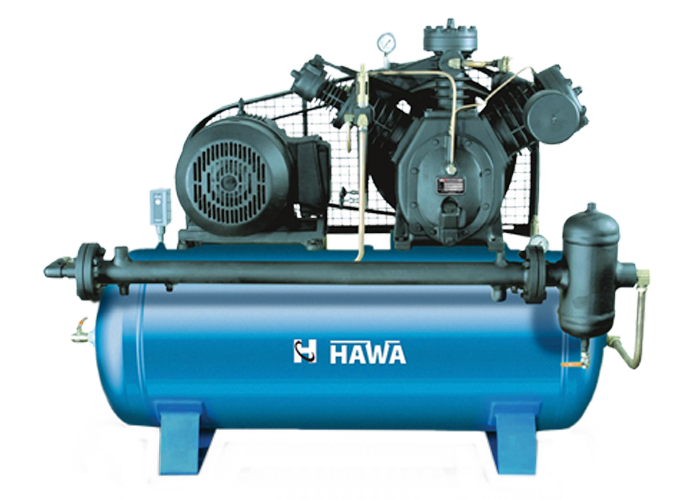

Air Cooled High Pressure Compressor

Model Motor No.of Cylinders cfm pd fad Maximum Pressure psig kg/cm2g Air Receiver (ltrs.)
HC-231 3.00 2 7.40 4.80 500 35.15 150
HC-251 7.50 2 24.75 14.50 500 35.15 300/500
HC-71 T2 12.50 2 36.00 21.60 500 35.15 300/500
HC-15 T2 15.00 3 41.25 31.41 500 35.15 500
HC-15 T2 20.00 3 49.50 37.70 640 45.00 500
HC-15 TH
Water Cooled
20.00 3 54.00 4.00 385 26.00 500
