ROTARY SCREW AIR COMPRESSOR

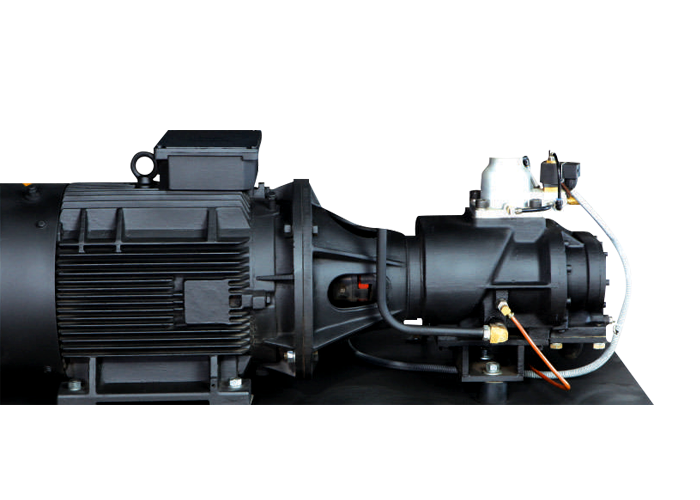

One to One Gearless Direct Drive Screw Air Compressor
At low speed 2950 RPM larger Air end are more efficient then high speed Air ends, delivering more compressed air for same drive power, Lower speed means increased efficiency and durability with reduced compressed air cost, less wear & less maintenance cost.
Technical Specification Direct Drive Models
| Compressor Model | Motor | FAD@ 6 kg / Cm2 |
FAD@ 10 kg / Cm2 |
Spund Level |
Compressor RPM |
Dimension L W H |
Weigh | |
| kw | hp | cfm | cfm | dB | ( Inches ) | kg. | ||
| CTSD 10 | 7.5 | 10 | - | 35 | 68 | 2900 | 34 X 26 X 44 | 400 |
| CTSD 15 | 11 | 15 | - | 55 | 68 | 2900 | 36 x 30 x 43 | 400 |
| CTSD 20 | 15 | 20 | - | 77 | 70 | 2900 | 49 X 30 X 51 | 450 |
| CTSD 25 | 18.5 | 25 | 115 | 100 | 71 | 2900 | 49 X 30 X 51 | 550 |
| CTSD 30 | 22 | 30 | - | 114 | 72 | 2900 | 49 X 30 X 51 | 550 |
| CTSD 40 | 30 | 40 | 215 | 172 | 72 | 2900 | 57 X 35 X 58 | 750 |
| CTSD 50 | 37 | 50 | 254 | 215 | 73 | 2900 | 57 X 35 X 58 | 800 |
| CTSD 60 | 45 | 60 | 321 | 254 | 74 | 2900 | 73 X 42 X 67 | 960 |
| CTSD 75 | 55 | 75 | 421 | 321 | 76 | 2900 | 73 X 42 X 67 | 1150 |
| CTSD 100 | 75 | 100 | 543 | 521 | 76 | 2900 | 79 X 47 X 65 | 1400 |
| CTSD 120 | 90 | 120 | 670 | 543 | 76 | 2900 | 79 X 58 X 70 | 1900 |
| CTSD 150 | 110 | 150 | - | 670 | 76 | 2900 | 92 X 59 X 73 | 2400 |
| CTSD 180 | 132 | 180 | - | 773 | 76 | 2900 | 92 X 61 X 75 | 2500 |
| CTSD 215 | 160 | 215 | - | 830 | 77 | 2900 | 99 X 65 X 78 | 3200 |
| CTSD 250 | 185 | 250 | - | 1002 | 79 | 2900 | 110 X 70 X 85 | 3700 |
| CTSD 300 | 220 | 300 | - | 1323 | 79 | 2900 | 110 X 70 X 85 | 4100 |
| CTSD 335 | 245 | 335 | - | 1440 | 79 | 2900 | 110 X 70 X 85 | 4500 |
