MEDICAL AIR COMPRESSOR
NON LUBRICATED COMPRESSOR
Features

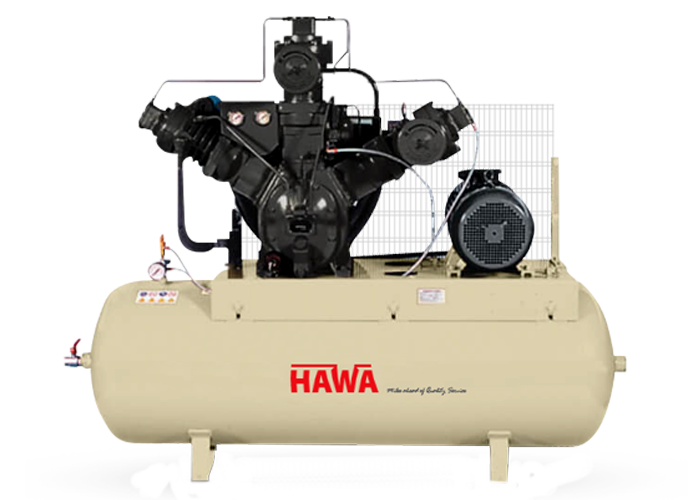

HAWA Non-lubricated piston compressors, do not have oil in the cylinders and are designed for applications where air free from oil is required. The non-lubricated units use Teflon rings and rider bands to achieve cooling in the compression area.
Product Features
♦ Designed for hospital duty cycles
♦ Slow running speed for lesser wear and tear
♦ Air receiver coated internally for corrosion Resistance
♦ Base mounted and receiver mounted variants available
♦ Designed for hospital duty cycles
Technical Specification
| Model | No. of Cylinder |
Piston Displacement | Pressure | Motor | ||
| M3/HR | CFM | KG/CM2 | HP | KW | ||
| HC5NL | 2 | 496 | 17.5 | 10.5 | 5 | 3.7 |
| HC7.5NL | 3 | 850 | 30 | 10.5 | 7.5 | 5.5 |
| HC10NL | 2 | 991.2 | 35 | 8.6 | 10 | 7.5 |
| HC10NL2 | 3 | 1133 | 40 | 8.6 | 10 | 7.5 |
| HC15NL | 3 | 1699 | 60 | 8.6 | 15 | 11 |
| HC20NL | 3 | 1901 | 67 | 8.6 | 20 | 15 |
| HC10NLD | 3+3 | 1982 | 70 | 8.6 | 10+10 | 15 |
| HC15NLD | 3+3 | 3398 | 120 | 8.6 | 15+15 | 22 |
